sAVER cARRIAGE SETWORKS (Line Shaft)

MASS Set Shaft Carriage Setworks is designed to control a line shaft carriage. A color touch screen is mounted in the sawyer's console, vertically or horizontally, for operation, setup, calibration, and diagnostics. The setworks comes standard with the ability to control (2) two forward speeds, (1) one reverse, and a brake.
The carriage only needs a forward and reverse function for the setworks to operate. Optionally, the setworks can be configured to control a vertical edger from the same position controller as the carriage. It is prewired at the factory, so installation is quick and straightforward. Upgradable to MASS proportional valve and/or Linear Positioning carriage setworks at a very affordable price! It features all of the following distinct advantages:


  • 54 Preset Buttons (Six Pages of 9 Buttons) Each of Which Can Be Configured As A Cant, Board, Or Pre-Built Stack
  • Position Accuracy Up To 1/64"
  • Touch Screen That Is Dust Proof, Water Resistant, Has Wide Temperature Range (-4 F To +140 F), and Can Be Mounted Horizontally or Vertically
  • Proven PC Technology (Windows Embedded OS)
  • Automatically Adjusts To Changes in Coast Due To Temperature and Mechanical Variations
  • Quick Installation
  • Easy To Calibrate
  • Employs MTS Position Transducers (Probes)

MASS SCANNING SYSTEMS

The MASS Scanning system is of tremendous benefit to the sawyer and is practically transparent to him. The MASS Scanner System sets taper, opening face and automatically builds cutting stacks based on mill specified parameters. It is an excellent light curtain replacement using 3D technology (Bottom sensors are not required). The bottom line is more usable lumber in less time, which equates to a quick return on investment. An experienced sawyer will love the automatic features, while an inexperienced sawyer will come up to production much quicker.
  • Direct Replacement of Outdated Competitive Systems
  • Delta RMC-150E Multi-Axis Motion Controller
  • Position Accuracy 0.001"
  • Scan Accuracy 0.025"
  • Network Speeds Up To 1GB Sec
  • Laser Spacing 6 or 12 Inches
  • Dust Proof, Water Resistant, Temperature Range (-4 F To +140F) Touch Screen That Can Be Mounted Horizontally or Vertically
  • Proven PC Technology (Windows Embedded OS)
  • 54 Preset Buttons (Six Pages of 9 Buttons) Each of Which Can Be Configured As A Cant, Board, Or Pre-Built Stack
  • Scans All (4) Four Sides of Log
  • Accurately Sets Opening Face and Taper
  • Complete Dogging Controls
  • Infinite Tapering
  • Programmable Independent Jog, Taper, and Set Speeds
  • Adjustable Travel Limits for Dogs In/Out and Tong Dog
  • MTS Position Transducers (Probes)
  • Production Report Included (Custom Reports Available)

RESAW SETWORKS

The MASS Resaw Setworks is designed to control either horizontal resaws or linebar resaws. This system has many features and can be configured for different unique applications. Each system is prewired, making installation simple and easy. Also provided is an in-depth manual and easy to read wiring diagrams. Below are some of the many features this system provides.

  • Simple easy to use interface
  • 12 preset buttons, which can be configured to use exesting pushbuttons
  • Position Accuracy Up To 0.001"
  • Touch screen that is durable to harsh enviroments
  • Quick Installation
  • Easy To Calibrate
  • System alarm page to easly troubleshoot if there is a problem
  • Change from decimal to fraction with a push of a button

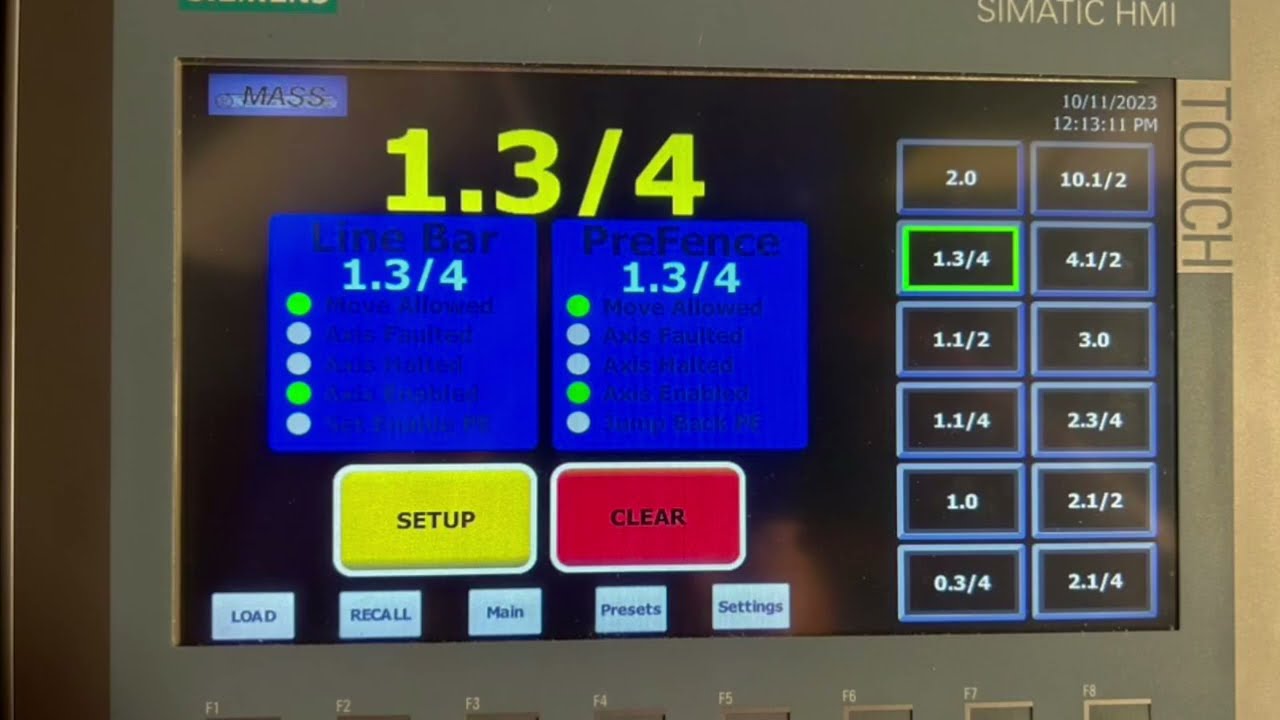

  • The run screen displays the target position in yellow, and the actual positions in white
  • Delta RMC motion controller
  • Press roll control (optionial)

CUSTOM CONTROLS: EDGERS AND MORE

In keeping with its mission statement and goal to always go a little further than expected, MASS can supply all of your setworks and control technologies. The biggest difference you'll find is that we'll only take on the project if we are 100% confident that our solution is the best solution for your operation. Contact us now to learn more about our fully customizable products and technologies.
